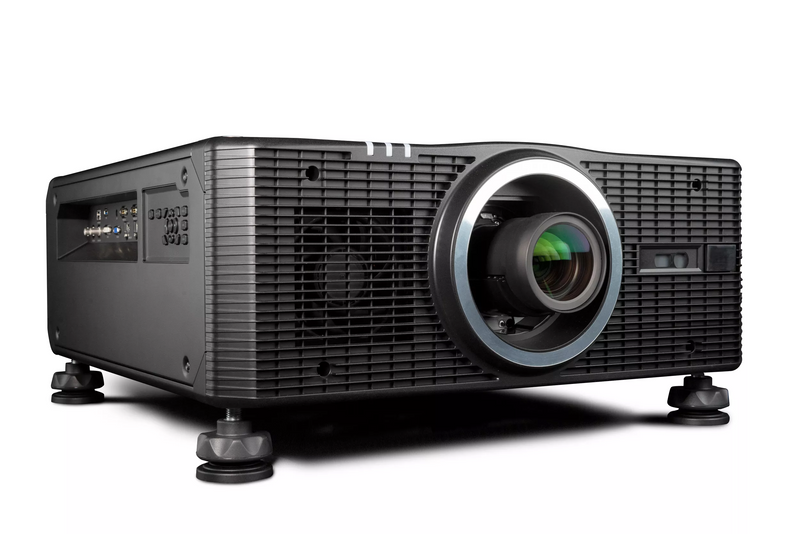

Barco G100-W22 3D Laser Phosphor Projector - R9010134

Barco G100-W22 3D - 22,000 Lumen WUXGA Single-Chip Laser Phosphor Projector

22,000 lumen, WUXGA, single-chip laser phosphor projector. The Barco G100-W22 3D (R9010134) delivers single-chip high-brightness 3D-ready projection with up-to-date input capabilities, a future-proof design, and full operational flexibility through Barco's wide GC-lens range — for 100% image performance in any venue.

Overview

The G100 series opens up the possibilities of Barco's single-chip offering with higher brightness levels than ever before. It delivers great image quality with impressive lumen output for bright projections both indoors and outdoors. The G100-W22 3D supports all the latest input sources, including HDMI 2.0, to assure deep color palettes and high-quality projections.

Thanks to Barco's Projector Toolset software, installing and managing your projector(s) can be done from the comfort of your own computer with an intuitive user interface. Pulse Toolset's blending and warping capabilities make the G100-W22 3D a perfect fit for multi-channel media-based attractions like planetariums, domes, theaters, and projection mapping installations.

100% Flexibility

To enable full operational versatility and effortless implementation across different project designs, the G100-W22 3D comes with a stable lens holder that guarantees reliable blending and non-moving images in multi-channel setups, plus a new extensive GC-lens range supporting throw ratios from 0.38 up to 10.8. This gives you the flexibility to project from long and/or short distances, with 360° orientation possibilities.

With excellent onboard cooling, the G100-W22 3D can withstand a maximum ambient operating temperature of 50°C (122°F) at only 42 dB max noise levels.

100% Reliability

Through its laser-phosphor light source and advanced cooling design, the G100-W22 3D provides a long operating time (>20,000 hrs) without the need for lamp changes — resulting in considerable cost savings on maintenance and consumables. With its up-to-date, future-proof design, the G100-W22 3D is built to meet your requirements for image quality, reliability, and sustainability.

Key Features

• 22,000 ISO Lumens (20,600 center lumens / 18,500 ANSI lumens) — up to 23,750 ISO lumens in Super Bright mode*
• 3D-Ready Single-Chip Projection with WUXGA resolution (1,920 x 1,200)
• Wide GC-Lens Range — throw ratios from 0.38:1 to 10.8:1 for ultimate placement flexibility
• Contrast Ratio — 1,100:1 sequential, 5,500:1 dynamic, Extreme Black up to 100,000:1
• 90% Brightness Uniformity and 16:10 aspect ratio
• Motorized Lens Shift, Zoom & Focus — up to 120% vertical / 50% horizontal shift depending on lens
• >20,000 Hour Laser Phosphor Light Source — maintenance-free, lamp-free operation
• Quiet Operation — max 42 dB even at 50°C (122°F) ambient temperature
• Barco Pulse Toolset — remote management, blending & warping for multi-channel setups

Specifications

• Projector Type: Single-chip DLP laser phosphor projector
• Resolution: 1,920 x 1,200 (WUXGA) — 0.96" DLP chip
• Brightness: 22,000 ISO lumen / 20,600 center lumen / 18,500 ANSI lumen; 23,750 ISO lumen (Super Bright mode)*
• Contrast Ratio: 1,100:1 sequential; 5,500:1 dynamic; Extreme Black: 100,000:1
• Brightness Uniformity: 90%
• Aspect Ratio: 16:10
• Lens Type: FLDX-lens 0.38:1; GC-lenses 0.65-0.75:1 / 0.84-1.02:1 / 1.02-1.36:1 / 1.2-1.5:1 / 1.5-2.0:1 / 2.0-4.0:1 / 4.0-7.2:1 / 7.2-10.8:1
• Optical Lens Shift: Vertical up to 120% (lens-dependent); Horizontal up to 50% (lens-dependent); Motorized zoom, focus & lens shift

*Super Bright mode is only available on 220V input power, with a lifetime of 16,500 hrs @ 25°C/77°F.
